PMT-15V35W2BAB
| 輸出 | PMT-15V35W2BA | PMT-15V50W2BA | PMT-15V75W2BA | PMT-15V100W2BA | PMT-15V150W2BA | PMT-15V150W2CA | |
| 輸出電壓 | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | |
| 輸出電壓范圍 | 13.5-16.5 V | 13.5-16.5 V | 13.5-16.5 V | 13.5-16.5 V | 13.5-16.5 V | 13.5-16.5 V | |
| 輸出電流 | 2.4 A | 3.4 A | 5.0 A | 7.0 A | 10.0 A | 10.0 A | |
| 輸出功率 | 36 W | 51 W | 75 W | 105W | 150 W | 150 W | |
| 紋波電壓 (20 MHz) | < 120 mVpp @ 0°C 至 70°C, 360 mVpp typ. @ -30°C 至 0°C |
< 150mVpp @ 0°C 至 70°C, 450mVpp typ. @ -30°C 至 0°C |
|||||
| 保持時間 | 115 VAC | 16 ms typ. | 12 ms typ. | 11 ms typ. | 9 ms typ. | 30 ms typ. | 12 ms typ. |
| 230 VAC | 70 ms typ. | 60 ms typ. | 52 ms typ. | 42 ms typ. | 55 ms typ. | ||
| 輸入 | |||||||
| 輸入相數 | 單相 | ||||||
| 輸入電壓范圍 | 90-264 VAC | 90-264VAC | 90-132 VAC, 180-264 VAC (選擇開關) |
90-264VAC | |||
| 輸入頻率 | 47-63 Hz | ||||||
| 輸入電流 | 115 VAC | 0.7 A typ. | 0.95 A typ. | 1.4 A typ. | 1.9 A typ. | 3.0 A typ. | 3.0 A typ. |
| 230 VAC | 0.42 A typ. | 0.6 A typ. | 0.85 A typ. | 1.2 A typ. | 1.7 A typ. | 1.7 A typ. | |
| 滿載效率( 負載) | 230 VAC | 87.0% typ. | 88.0% typ. | 88.0% typ. | 89% typ. | ||
| 浪涌電流(冷啟動) | 230 VAC | 45 A typ. | 55 A typ. | 55 A typ. | 60 A typ. | ||
| 功率因素 | NA | ||||||
| 漏電流 (50 Hz) | 240 VAC | < 0.5 mA | |||||
| 機構 | |||||||
| 外殼 / 底架 | SGCC / 鋁質 | ||||||

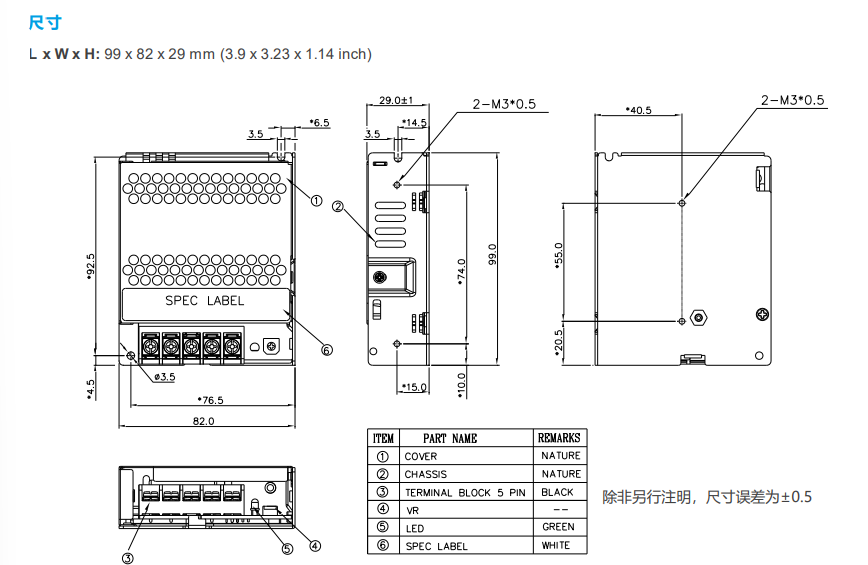

| 尺寸(L × W × H) | mm | 99 × 82 × 29 | 99 × 82 × 29 | 99 × 97 × 30 | 129 × 97 × 30 | 159 × 97 × 30 | 159 × 97 × 30 |
| inch | 3.90 × 3.23 × 1.14 | 3.90 × 3.23 × 1.14 | 3.90 × 3.82 × 1.18 | 5.08 × 3.82 × 1.18 | 6.26 × 3.82 × 1.18 | 6.26 × 3.82 × 1.18 | |
| 重量 | kg | 0.17 | 0.18 | 0.22 | 0.29 | 0.35 | 0.39 |
| lb | 0.36 | 0.39 | 0.48 | 0.63 | 0.78 | 0.86 | |
| 冷卻方式 | 自然對流 | ||||||
| 平均故障間隔時間 | > 700,000 hrs | ||||||
| 環境 | |||||||
| 運行溫度 | -30°C 至 +70°C | ||||||
| 儲存溫度 | -40°C 至 +85°C | ||||||
| 運行濕度 | 20 至 90% RH (無冷凝) | ||||||
| 運行海拔高度 | 0 至 5,000 m (0 至 16,400 ft) | ||||||
